MADDIDA and the Type 511 Oscilloscope
The MADDIDA (Magnetic Drum Digital Differential Analyzer) was a special-purpose computer developed by Northrop in the late 1940s. It was designed to solve systems of ordinary differential equations for guidance systems. It was a digital computer using Boolean algebra and used voltages to represent data bits.

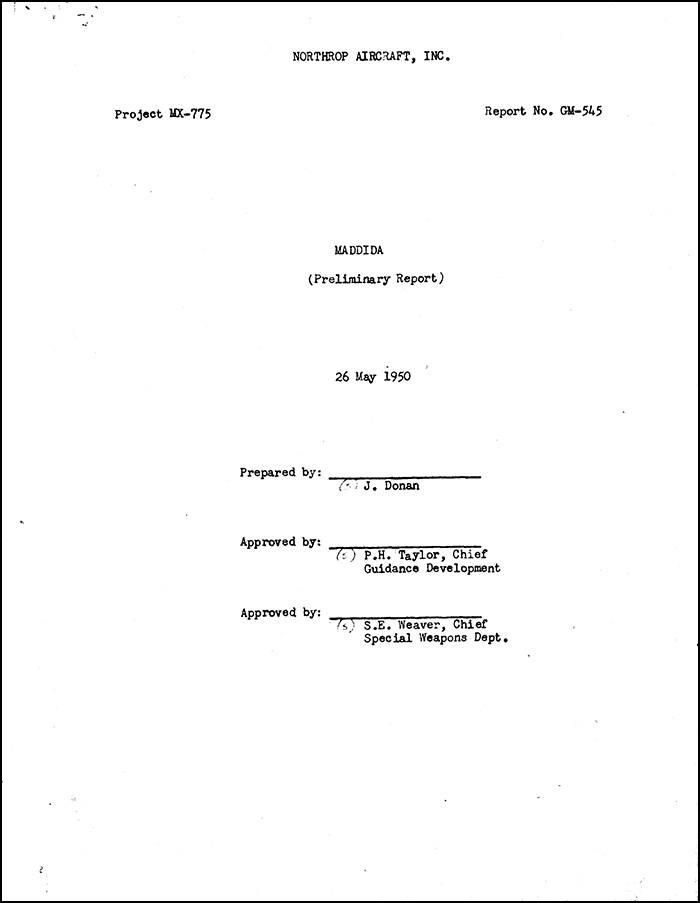

These two brochures describe the MADDIDA system. The first is a MADDIDA preliminary report from May 1950. Click on the image to view the PDF. The second is the MADDIDA brochure.
These photos of the the MADDIDA system all feature a Tektronix Type 511AD oscilloscope. This first photo is a customer demonstration of the MADDIDA system.
This photo shows two MADIDDA systems.
This photo shows a MADDIDA system and Sally Stephens operating a Marchant calculating machine. Note that this is the first version of the Type 511 oscilloscope which has the external graticule lamp and the single sweep speed dial.
